NissanVanette SerenaKVC2301.1997 - 01.1998Engine and fuel system186 - fuel injection pump (diesel)(engine)

186 - fuel injection pump (diesel)(engine) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ)drive 2WD (two-wheel drive )
Manufacture period01.1997 - 01.1998grade FXtransmission AT (automatic transmission )

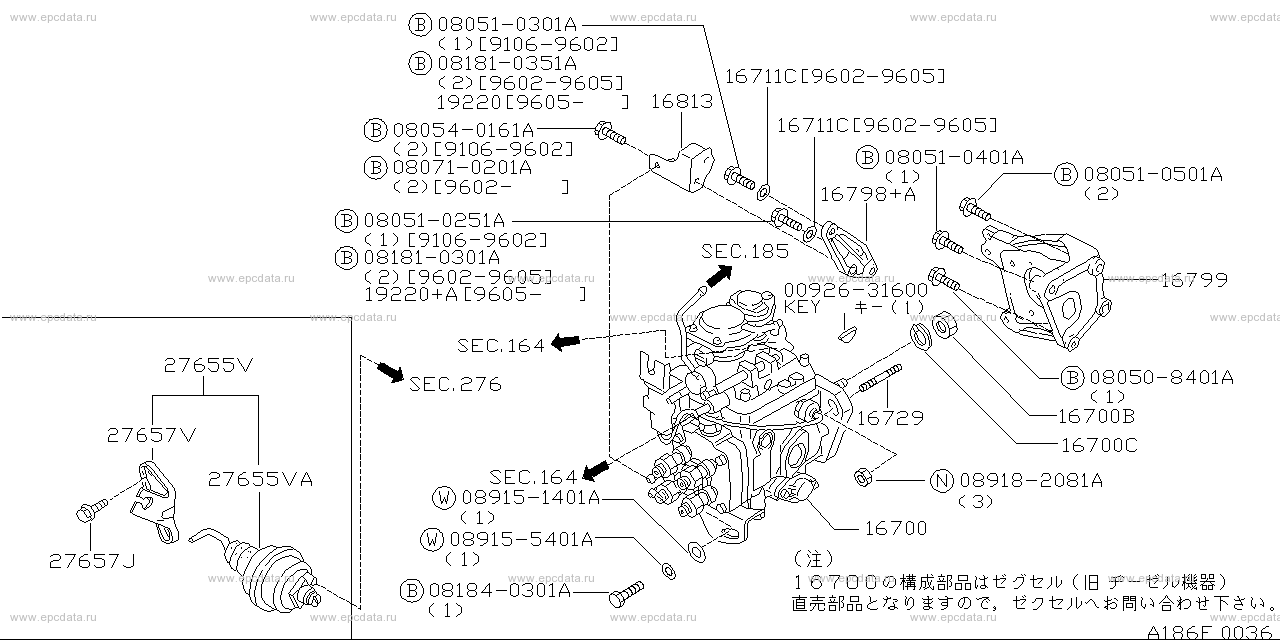

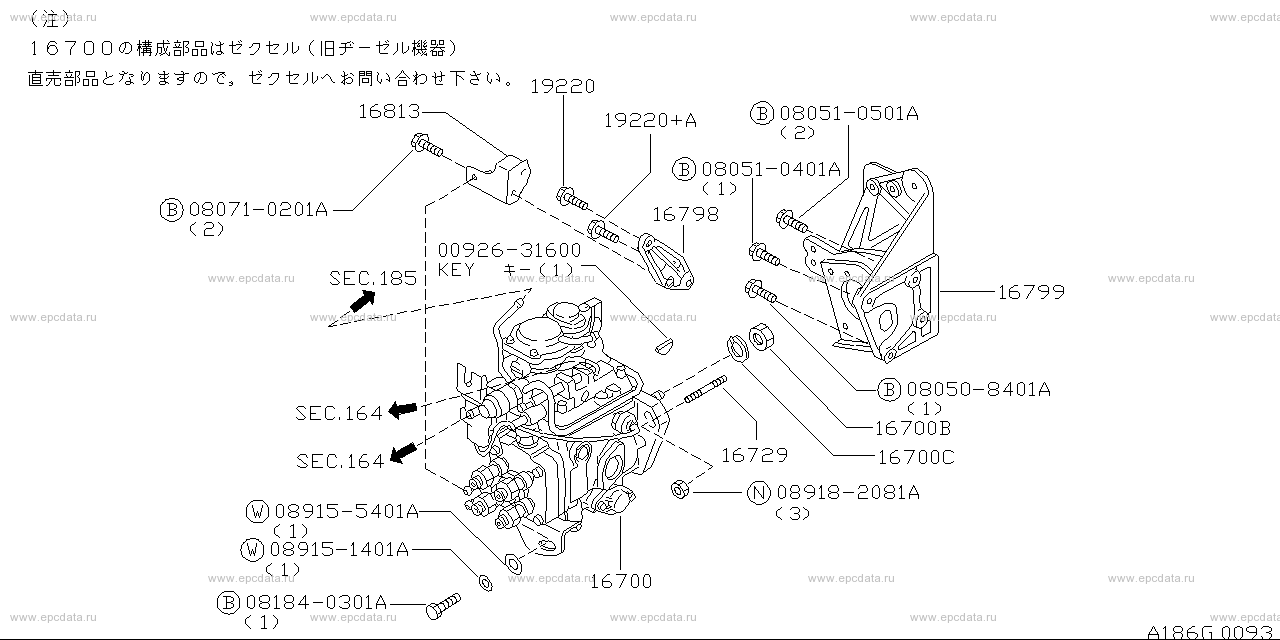

Scheme 186F_001 Scheme 186G_001
Applies for modelsManufacture periodSpec
CD20T05.1994 - 01.1997

Open full screen pictureOpen full screen picture
Up to the top

0092631600
080508401A
080510251A
080510301A
080510401A
080510501A
080540161A
080710201A
081810301A
081810351A
081840301A
089151401A
089155401A
089182081A
16700 - pump assembly, injection
16700B - nut
16700C - washer
16711C - washer
16729 - stud
16798+A - spacer
16799 - bracket, injection
16813 - bracket, injection
19220 - bolt
19220+A - bolt
27655V - actuator
27655VA - actuator
27657J - bolt
27657V - bracket, actuator
Applies for modelsManufacture periodSpec
CD20ET01.1997 - 01.1998
CD20ET01.1998 - ...

Open full screen pictureOpen full screen picture
Up to the top

0092631600
080508401A
080510401A
080510501A
080710201A
081840301A
089151401A
089155401A
089182081A
16700 - pump assembly, injection
16700B - nut
16700C - washer
16729 - stud
16798 - spacer
16799 - bracket, injection
16813 - bracket, injection
19220 - bolt
19220+A - bolt
